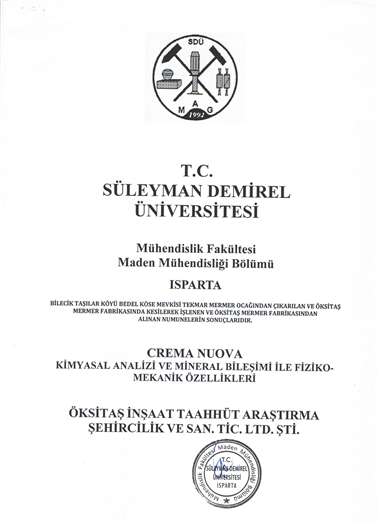

T.C.
UNIVERSITY OF SULEYMAN DEMIREL
Engineering faculty
Department of MiningEngineering
32260 ISPARTA
MARBLE SAMPLESTAKEN FROM TEKMAR MARBLE QUARRY LOCATED AT BILECIK , TASILAR VILLAGE BEDEL KOSE REGIONAND
CUT TO SIZE ATOKSITAS MARBLE FACTORY
CREMA NUOVA
PHYSICO-MECHANICAL PROPERTIES
CHEMICAL ANALYSIS AND
MINERAL COMPOSITION
OKSITAS BUILDING COMPANY
(ÖKSİTAŞ İNŞAAT TAAHHÜT ARAŞTIRMA
ŞEHİRCİLİK VE SAN. TİC. LTD. ŞTİ.)

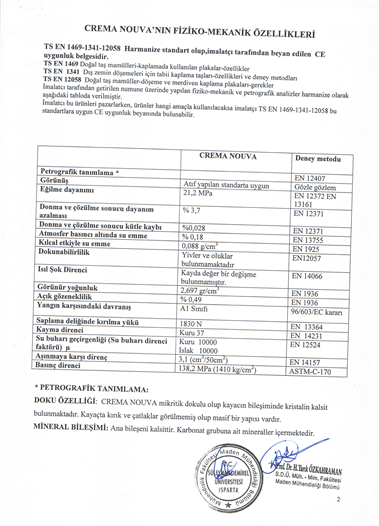

PHYSICO-MECHANICAL PROPERTIESOF CREMA NUOVA
|
|
|
TEST STANDARD |
|
Petrographic examination* |
|
EN 12407 Petrographic examination |
|
flexural strength |
21.2 MPa |
EN 12372 EN 13161,
|
|
Freezing and thawing strength |
% 3.7 |
EN 12371 Determination of frost resistance |
|
Loss of mass after Freezing and thawing test |
%0.028 |
EN 12371 |
|
Determination of water absorption |
% 0.18 |
EN 13755 |
|
Determination of water absorption
|
0.088 g/cm3 |
EN 1925 |
|
Touching for irregularities
|
-No scratch marks |
EN12057 |
|
Resistance to ageing by thermal shock
|
N.P.A |
EN 14066 |
|
Apparent density |
2.697 gr/cm3 |
EN 1936 |
|
Open porosity |
% 0.49 |
EN 1936 |
|
Reaction to fire tests |
A1 Class |
96/603/EC decision, Classification using test data from reaction to fire tests EN 13501–1 |
|
Breaking load at dowel hole |
1830 N |
EN 13364 |
|
Slip resistance |
Dry 37 |
EN 14231 |
|
Water vapour Transmission Properties, ( factor of resistance to transmission) µ |
Dry 10000 Wet 10000 |
EN 12524 EN ISO 12752 Determination of water vapour, Transmission Properties (ISO 12572:2001) |
|
Resistance to abrasion |
3.1 cm3/50cm2 |
EN 14157 |
|
Compressing strength |
138.2 MPa |
ASTM-C-170; |
*PETROGRAPHIC STUDIES:
TEXTURE : CREMA NUOVA has micritic texture and made upfrom crystalline calcite. There is no cracks seen it has a massive structurewithout cracks..
MINERALCOMPOSITION : Main constituent is calcite and carbonate minerals are present.
This is a declaration ofconformity to CE marking by the manufacturer on the basis of the results oftesting according to EN 1469-1341-12058 which are harmonized standards.
TS EN 1469 Natural stones for outside cladding
TS EN 1341 forfloor covering and TS EN 12058 for outside floor and pavements
Other Physico-mechanical Properties of CREMA NOVA;
|
Ultrasonic velocity, m/s |
6550 |
|
Total porosity, % |
0.66 |
|
Specific weight of solid part, g/cm3 |
2.715 |
CHEMICALANALYSIS
|
Composition |
% |
|
CaO |
54.2 |
|
MgO |
0.40 |
|
SiO2 |
1.85 |
|
Al2O3 |
0.20 |
|
Fe2O3 |
1.69 |
- Density of CREMA NUOVA is 2.697 gr/cm3 and specific gravity is 2.715 gr/cm3 which is higher than the minimum Standard value of 2.55 gr/cm3. Therefore satisfies the marble Standard TS EN 1467.
- Apparent porosity of CREMA NUOVA is 0.49 % which is lower than the maximum Standard value of 12 %. Total (real) porosity is 0.66 %. Therefore satisfies the marble Standard TS EN 1469.
- Water Absorption at atmospheric pressure by weight is 0.18 % which is lower than the maximum Standard value of 7.5 %. Therefore satisfies the marble Standard TS EN 1469.
- Water Absorption at atmospheric pressure by volume is 0.49 % which is lower than the maximum Standard value of 12 %. Therefore satisfies the marble Standard TS EN 1469.
- Compressive strength of CREMA NUOVA is 138.2 MPa which are higher than the minimum Standard value of 500 kg/cm2 for building Stones. And the minimum Standard value of 350 kg/cm2 for marbles used in wall cladding. Therefore satisfies the marble Standard TS EN 1467.
- Compressive strength after freezing and thawing is 133.1 MPa and change in compressive strength after freezing and thawing (-) is 3.7 % which should be less than 5%. Percentage weight loss after freezing and thawing is 0.028 % which should be less than 1%. Therefore satisfies the marble Standard TS EN 1469.
- Flexural (bending) strength of CREMA NUOVA is 21.2 MPa which is higher than the minimum Standard value of 40 kg/cm2 for building Stones. Therefore satisfies the marble Standard TS EN 1467.
Conclusion
This is a declaration ofconformity to CE marking of CREMA NUOVA marble to European union CEN Standardsaccording to the test results obtained from the mineralogical-petrographicexamination and physico-mechanical tests carried out as specified by ENstandards shown in Tables.
Yours truly 10.08.2012
Prof. H. Tarik Ozkahraman
